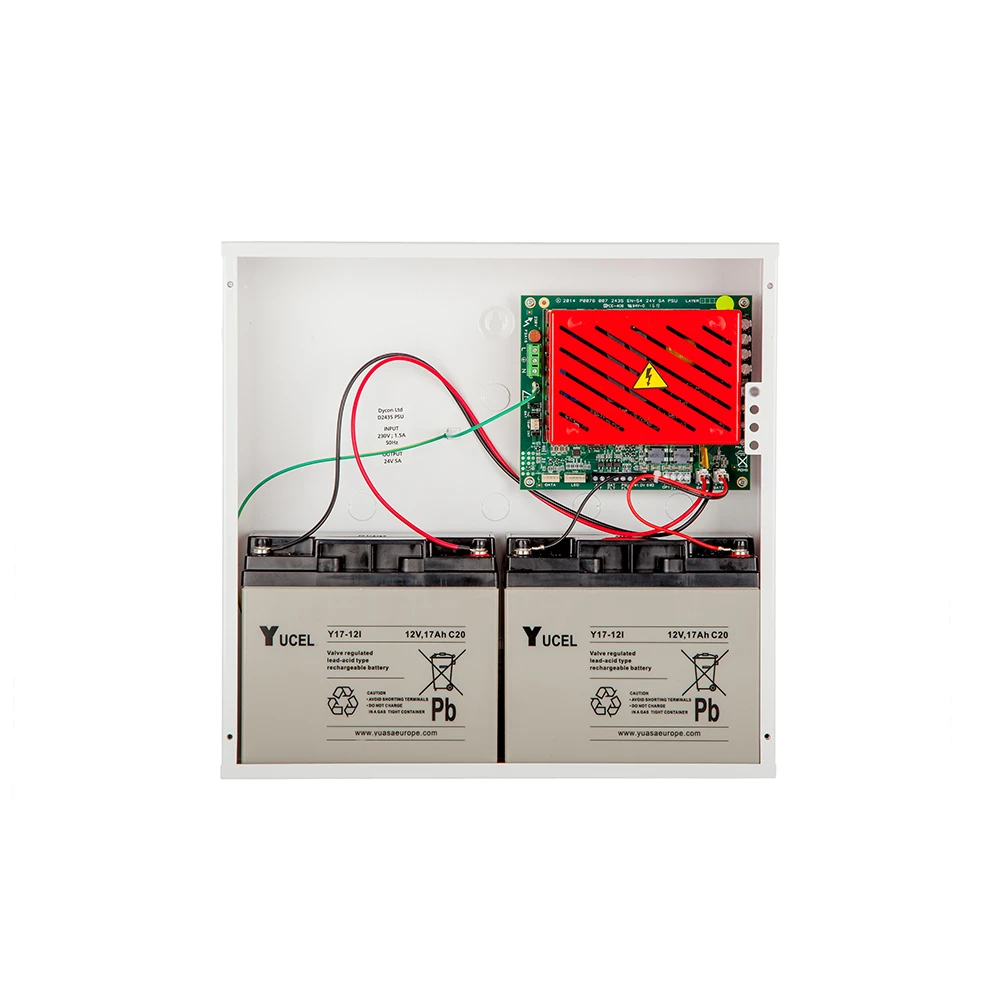

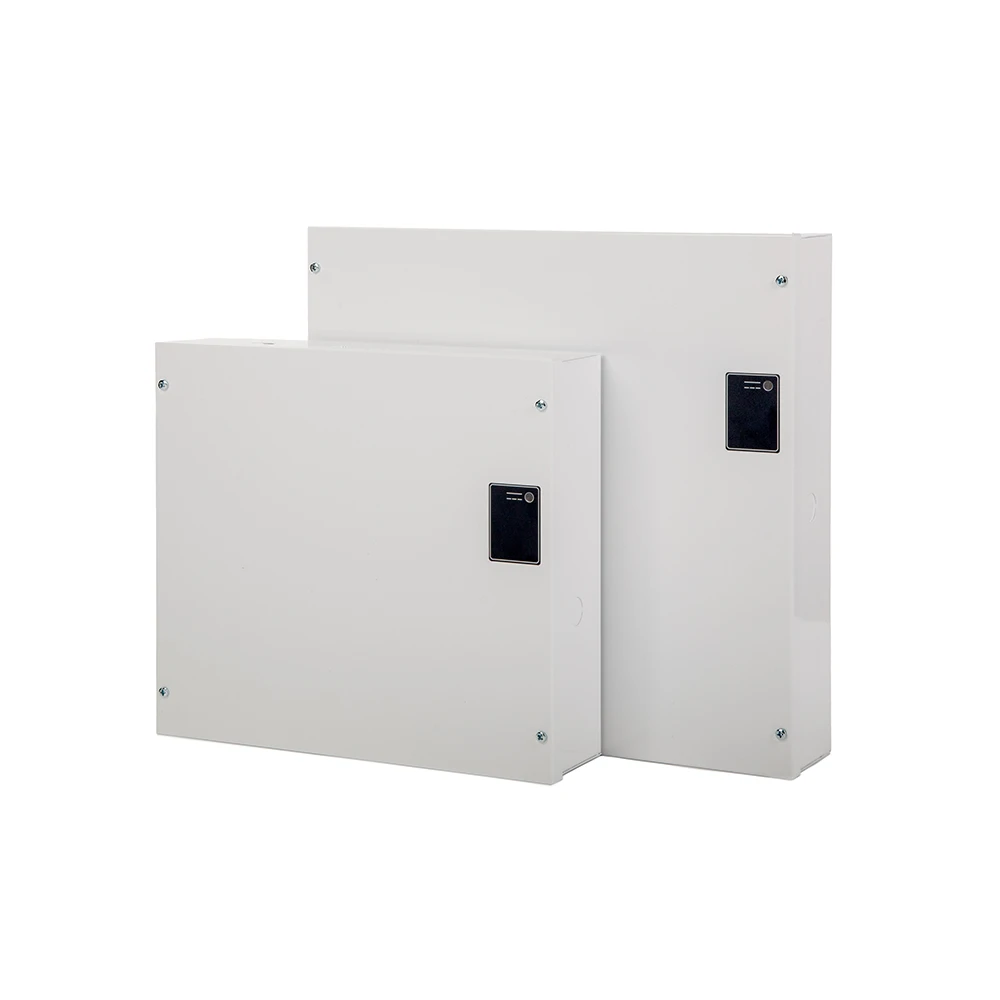

Dycon D2435-17 | EN54-4 Approved 5Ah Power Supply (max 17ah battery)
INC VAT
Code: FDS401/554
A premium range of fire alarm remote power supply units, the Dycon D2435-17 is a 5amp switched-mode power supply complying with EN54-2 and EN54-4.
The PSU features on demand load sharing to provide exceptional flexibility, allowing rapid, large-capacity, battery charging with either extended, standby, hold-up duration at light loads, or short, high current, peak loads where the spare capacity is diverted to battery charging.
All units are fitted with a constant operation temperature sensor which automatically adjusts the charging rate to ensure that a battery is never over charged simply because the ambient temperature has risen.
Rather than relying on simple, voltage readings to gauge the battery condition, the D243X-series units constantly check the batteries impedance which gives a more accurate reading and prior warning of impending problems.
Microprocessor controlled operation and protection
On-demand battery charging and load output current sharing
Battery impedance monitoring
Automatic output reconnection after short circuit fault
No user-serviceable fuses, outputs protected by electronic E-fuses
Two independent, electronically fused, switched outputs
Three opto-relay fault outputs for AC Power Fail, Battery Fault, PSU Fault
Four status LED’s; I x external and visible, 3 x inside the housing, visible on removing the lid
Over-voltage output protection
Battery-free option can be selected by a jumper. Note : Using this jumper to disable the battery monitoring when a battery is fitted will create an EN54-4 non-compliance.
On-board or remote temperature sensing (jumper selectable) with optional remote sensor
UK-manufactured electronics and steel housings
Specification | Details |
Construction Product Regulation No. | 0359-CPR-00434 |
Compliance Standard | EN54-4: 1997+A1:2002+A2:2006 |
Certificate No. | No. 17LHK0674-01 (issued by Intertek Group plc) |
Voltage Input | 230VAC +10% / -15%; 50Hz ± 15% |
Max. AC Input Continuous Current | D2431 - 0.45A; D2433 - 0.9A; D2435 - 1.5A |
Recommended Fused-Spur Input Fuses | D2431-250V T1A; D2433-250V T3.15A; D2435 250-T3.13A |
Output Voltage with AC Power | Minimum 26VDC; Maximum 29.5VDC Nominal |
Output Ripple | <0.07V Peak-to-Peak at Full Rated Output |
Maximum Output Current at Full Load | D2341 - 1.5A; D2343 - 3A; D2345 - 5A |
Battery Charging Voltage | 27.6VDC |
Battery Charging Current | On-Demand (Maximum): D2431 - 1.5A; D2343 - 3A; D2345 - 5A |
Type of Batteries Required | D2431-7 & D2433-7: 2 x 12VDC 7 or 8Ah sealed lead/acid |
D2433-17 & D2435-17: 2 x 12VDC 17Ah sealed lead/acid | |
Standby Output Voltage | Minimum 21VDC; Maximum 27.6VDC |
PSU Standby Current | 32mA |
Over-Voltage Cut-Out Threshold | 30VDC ±2% |
Low-Voltage Power Output Fault | <22VDC ±2%; Restore >23VDC ±2% |
Battery Deep Discharge Voltage Limit | 21VDC ±2% |
Output Monitoring Threshold | Battery Charging Voltage <±2% |
Battery Fuse | 6A PTC non-replaceable |
Fault Opto-Relays | 3 x Normally-Closed (NC) or NO with jumper setting, 100mA at 60V; ON-Resistance 16 Ohms max; 1500VRMS Isolation Voltage. |
Faults: AC Power Fail, Battery Fault, PSU Fault. | |
Operating Temperature Range | -10˚C to +40˚C |
Humidity | 95% non-condensing |
PCB Size | 168 x 141 x 65 mm |
A premium range of fire alarm remote power supply units, the Dycon D2435-17 is a 5amp switched-mode power supply complying with EN54-2 and EN54-4.
The PSU features on demand load sharing to provide exceptional flexibility, allowing rapid, large-capacity, battery charging with either extended, standby, hold-up duration at light loads, or short, high current, peak loads where the spare capacity is diverted to battery charging.
All units are fitted with a constant operation temperature sensor which automatically adjusts the charging rate to ensure that a battery is never over charged simply because the ambient temperature has risen.
Rather than relying on simple, voltage readings to gauge the battery condition, the D243X-series units constantly check the batteries impedance which gives a more accurate reading and prior warning of impending problems.
Microprocessor controlled operation and protection
On-demand battery charging and load output current sharing
Battery impedance monitoring
Automatic output reconnection after short circuit fault
No user-serviceable fuses, outputs protected by electronic E-fuses
Two independent, electronically fused, switched outputs
Three opto-relay fault outputs for AC Power Fail, Battery Fault, PSU Fault
Four status LED’s; I x external and visible, 3 x inside the housing, visible on removing the lid
Over-voltage output protection
Battery-free option can be selected by a jumper. Note : Using this jumper to disable the battery monitoring when a battery is fitted will create an EN54-4 non-compliance.
On-board or remote temperature sensing (jumper selectable) with optional remote sensor
UK-manufactured electronics and steel housings
Specification | Details |
Construction Product Regulation No. | 0359-CPR-00434 |
Compliance Standard | EN54-4: 1997+A1:2002+A2:2006 |
Certificate No. | No. 17LHK0674-01 (issued by Intertek Group plc) |
Voltage Input | 230VAC +10% / -15%; 50Hz ± 15% |
Max. AC Input Continuous Current | D2431 - 0.45A; D2433 - 0.9A; D2435 - 1.5A |
Recommended Fused-Spur Input Fuses | D2431-250V T1A; D2433-250V T3.15A; D2435 250-T3.13A |
Output Voltage with AC Power | Minimum 26VDC; Maximum 29.5VDC Nominal |
Output Ripple | <0.07V Peak-to-Peak at Full Rated Output |
Maximum Output Current at Full Load | D2341 - 1.5A; D2343 - 3A; D2345 - 5A |
Battery Charging Voltage | 27.6VDC |
Battery Charging Current | On-Demand (Maximum): D2431 - 1.5A; D2343 - 3A; D2345 - 5A |
Type of Batteries Required | D2431-7 & D2433-7: 2 x 12VDC 7 or 8Ah sealed lead/acid |
D2433-17 & D2435-17: 2 x 12VDC 17Ah sealed lead/acid | |
Standby Output Voltage | Minimum 21VDC; Maximum 27.6VDC |
PSU Standby Current | 32mA |
Over-Voltage Cut-Out Threshold | 30VDC ±2% |
Low-Voltage Power Output Fault | <22VDC ±2%; Restore >23VDC ±2% |
Battery Deep Discharge Voltage Limit | 21VDC ±2% |
Output Monitoring Threshold | Battery Charging Voltage <±2% |
Battery Fuse | 6A PTC non-replaceable |
Fault Opto-Relays | 3 x Normally-Closed (NC) or NO with jumper setting, 100mA at 60V; ON-Resistance 16 Ohms max; 1500VRMS Isolation Voltage. |
Faults: AC Power Fail, Battery Fault, PSU Fault. | |
Operating Temperature Range | -10˚C to +40˚C |
Humidity | 95% non-condensing |
PCB Size | 168 x 141 x 65 mm |
