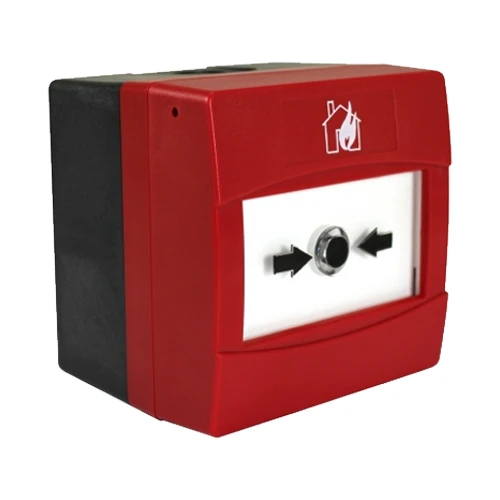

C-TEC CA47067 CAST IP67 Surface Mount Manual Call Point

Name: C-TEC CA47067 CAST IP67 Surface Mount Manual Call Point
Brand: C-tec
Price: 98.232 GBP
Availability: InStock

£98.23

INC VAT

Code: FDS331/294

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview

A high-quality IP67 rated surface-mounting red manual call point for use with C-TEC's XFP & ZFP 'CAST' protocol Addressable Fire Panels.

LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13.
Onboard short-circuit loop isolator.
Smooth-action resettable element mimics the feel of breaking glass.
Supplied with reset/back box removal key and Not in Use label.
Red LED alarm ring illuminates call point face upon activation.
Photoluminescent operating window remains visible for up to 5 minutes.
5mA typical alarm current (370uA typical quiescent) @ 22-40V DC.

Product Specification

Approvals/certifications:LPCB certified to EN54 Parts 11 & 17 and KiwaTelefication certified to EN54-13
Compatibility:Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels
Application/operation:Surface mounting only
Supply/operating voltage:22 to 40V DC
Quiescent current:370A typical @ 22 to 40V DC
Alarm current:5mA typical @ 22 to 40V DC
Indicators:Red 'alarm ring'. Lit steady red (when activated) and flashing Red (when polling)
Connections:Loop IN, Loop OUT (x2)
Product dimensions (mm):87 W x 88 H x D 72mm (includes back box)
Construction & finish:Red ABS polycarbonate; Glass fibre window
IP Rating:IP67
Weight:228g
Operating conditions/temperature:-10C to +55C
