Code: FDS331/302
INC VAT
Code: FDS331/302

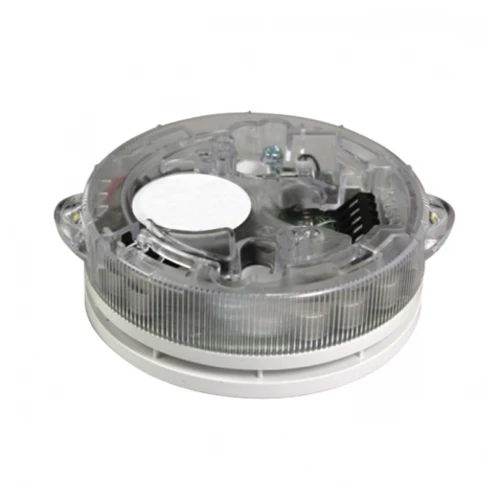

The C-TEC CA460A/W is an addressable base VAD unit for use with the C-TEC CAST protocol range of analogue addressable fire alarm system equipment.
LPCB certified to EN54-23 & 17 and Kiwa Telefication certified to EN54-13
Provides 'C-3-8' rated light distribution
Onboard short-circuit loop isolator
7mA typical alarm current (460A typical quiescent current) @ 27-40V DC
Group addressing facility allows multiple devices to be operated simultaneously
Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use
IP21C rated
White ceiling fixing plate & detector spur wires included
Approvals/certifications:LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility:Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation:Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked VAD/Detector Base combination
VAD category & coverage:C-3-8
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current:460A @ 27 to 40V DC (typical)
Alarm current:7mA @ 27 to 40V DC (typical)
Indicators:Polling (red LED)
Product dimensions (mm):122mm diameter x 46mm deep (not including optional CAST detector and base)
IP Rating:IP21C (Type A)
Weight:170g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)
Approvals/certifications: LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked VAD/Detector Base combination
VAD category & coverage:C-3-8
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current:460A @ 27 to 40V DC (typical)
Alarm current:7mA @ 27 to 40V DC (typical)
Indicators: Polling (red LED)
Product dimensions (mm):122mm diameter x 46mm deep (not including optional CAST detector and base)
IP Rating:IP21C (Type A)
Weight:170g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)
The C-TEC CA460A/W is an addressable base VAD unit for use with the C-TEC CAST protocol range of analogue addressable fire alarm system equipment.
LPCB certified to EN54-23 & 17 and Kiwa Telefication certified to EN54-13
Provides 'C-3-8' rated light distribution
Onboard short-circuit loop isolator
7mA typical alarm current (460A typical quiescent current) @ 27-40V DC
Group addressing facility allows multiple devices to be operated simultaneously
Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use
IP21C rated
White ceiling fixing plate & detector spur wires included
Approvals/certifications:LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility:Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation:Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked VAD/Detector Base combination
VAD category & coverage:C-3-8
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current:460A @ 27 to 40V DC (typical)
Alarm current:7mA @ 27 to 40V DC (typical)
Indicators:Polling (red LED)
Product dimensions (mm):122mm diameter x 46mm deep (not including optional CAST detector and base)
IP Rating:IP21C (Type A)
Weight:170g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)
Approvals/certifications: LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked VAD/Detector Base combination
VAD category & coverage:C-3-8
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current:460A @ 27 to 40V DC (typical)
Alarm current:7mA @ 27 to 40V DC (typical)
Indicators: Polling (red LED)
Product dimensions (mm):122mm diameter x 46mm deep (not including optional CAST detector and base)
IP Rating:IP21C (Type A)
Weight:170g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)
