C-TEC CA458A/SW CAST White C-3-8 Compact ceiling VAD

Name: C-TEC CA458A/SW CAST White C-3-8 Compact ceiling VAD
Brand: C-tec
Price: 44.34 GBP
Availability: InStock

Code: FDS331/315

£44.34

INC VAT

Code: FDS331/315

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

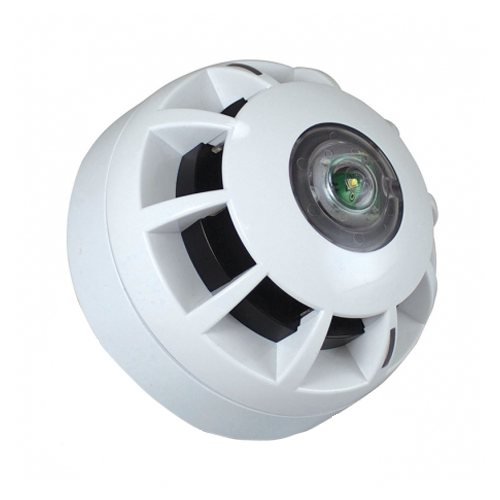

The C-TEC CA458A/SW is a white compact ceiling VAD using the C-TEC CAST analogue addressable protocol.

LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Provides 'C-3-8' light distribution when ceiling mounted
Can also provide 'W-3-3.1' light distribution when wall mounted
Onboard short-circuit loop isolator
460A quiescent current
7mA typical alarm current (460A typical quiescent current) @ 27-40V DC (VAD lit)
Group addressing facility allows multiple devices to be operated simultaneously
IP21C rated

Approvals/certifications: LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Provides C-3-8 rated coverage coverage when ceiling mounted. Can also be wall mounted to provide W-3-3.1 rated coverage
VAD category & coverage:C-3-8 or W-3-3.1
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current:460A typical
Alarm current:7mA @ 27 to 40V DC (VAD lit)
Indicators: Polling (red LED)
Product dimensions (mm):102mm diameter x 63mm deep
IP Rating: IP21C (Type A)
Weight:175g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)

C-TEC CA458A/SW CAST White C-3-8 Compact ceiling VAD Data Sheet

Click here to download
