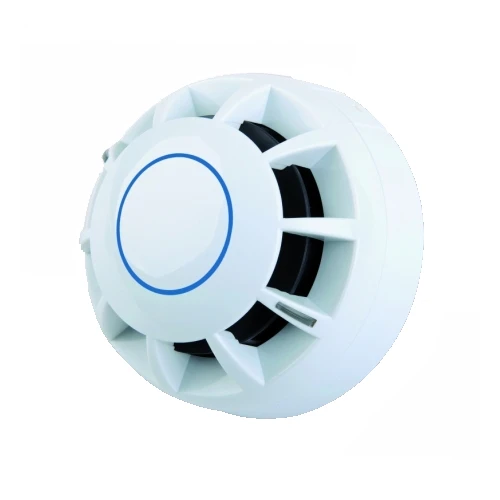

C-TEC CA414 CAST Programmable Multisensor Fire Detector

A high-quality programmable multi-sensor fire detector for use with C-TEC's XFP & ZFP 'CAST' protocol Addressable Fire Panels.

• Approvals/certifications: LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication certified to EN54-13

• Compatibility: Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels

• Type: Multi-Sensor

• Application/operation: As well as operating independently, the CA414s smoke & heat sensors combine to produce a sensitive response to freely burning fires, e.g. when a rise in heat is detected, its smoke response level reduces for improved detection and reduced false alarms

• Sensitivity :Mode 1: High Optical + A2 Heat ; Mode 2: Standard Optical; Mode 3: Standard Optical +A2 Heat; Mode 4: Low Optical + A2 Heat; Mode 5: Class A1R Heat

• Supply wiring:2-wire, polarity sensitive

• Supply/operating voltage22 to 40V DC

• Quiescent current:370A typical @ 22 to 40V DC

• Alarm current:5mA typical (LEDs illuminated) @ 22 to 40V DC

• Indicators:2 LED indicator strips emitting red light when in alarm offering 360 visibility. Optional remote LED

• Connections: Via CA408 base: 1 +Ve IN (analogue swich) ; 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen

• Product dimensions (mm):102.2mm diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base)

• IP Rating:IP42

• Weight:99g (not in base); 154g (in base)

• Operating: conditions/temperature-20C to +85C

• Requires a CA408 CAST base. CA408R relay base also available
