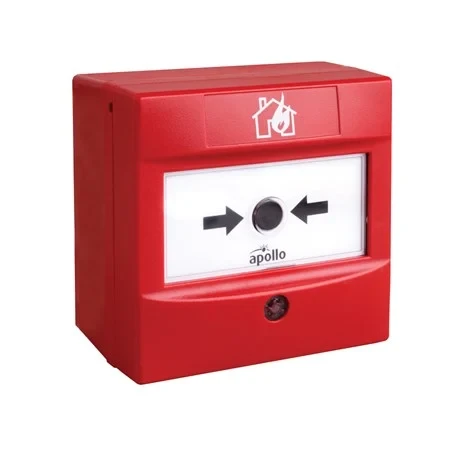

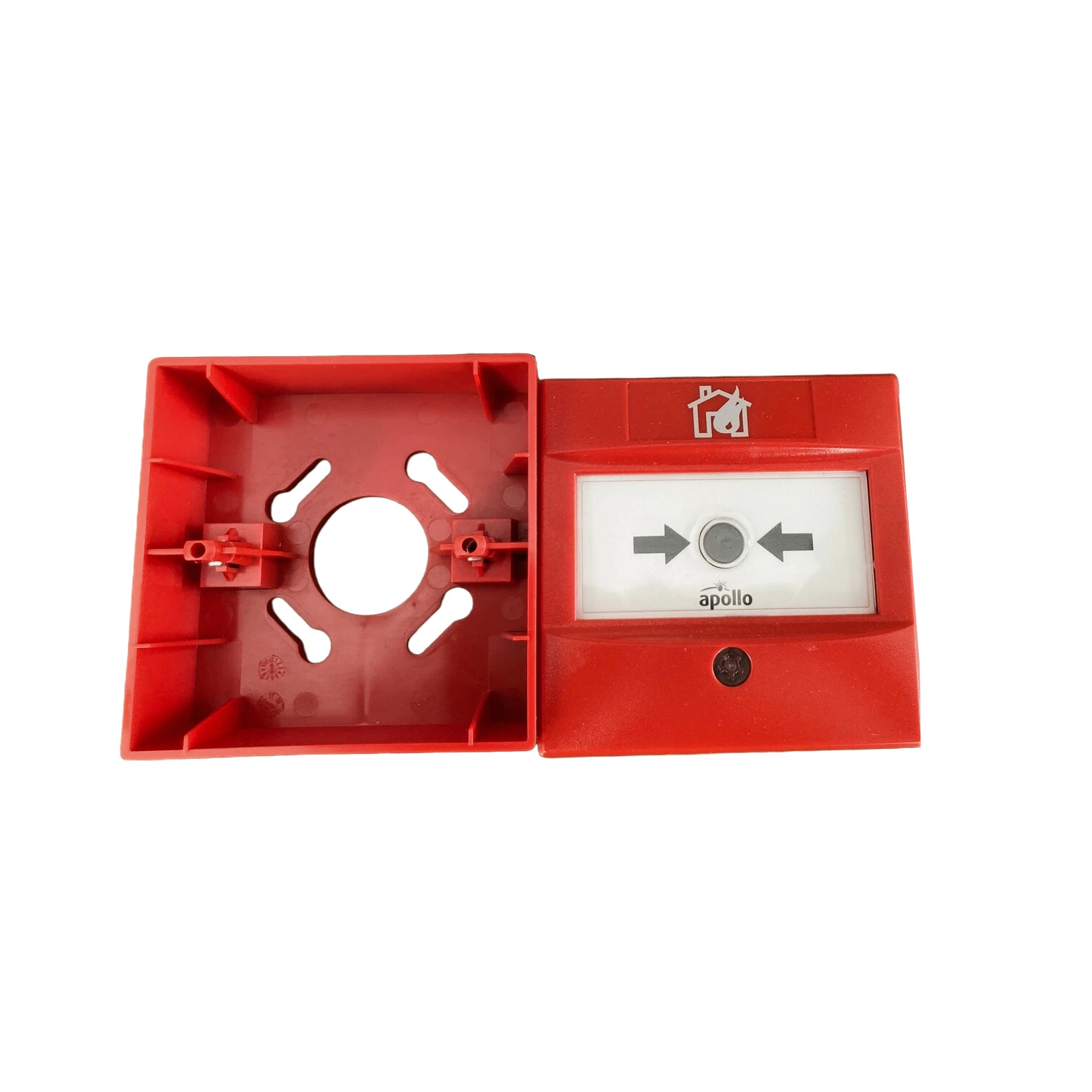

Apollo SA5900-908APO | Intelligent Addressable Manual Call Point
INC VAT
Code: FDS550/133
The Apollo SA5900-908APO can be used with any addressable system using Apollo protocol, the SA5900-908APO manual call point has push button operation and a redesigned reset mechanism. Fully compliant with EN54-11. The address of each call point is set at the commissioning stage by means of a seven segment DIL switch. The device features plug and play terminal connections and a resettable element.
Apollo SA5900-908APO
Fully compliant with EN54-11 and EN54-17
Backwards compatible with all Apollo protocols
Intelligent LED indicator
Plug and play terminal connections for fast wiring
Fire resistant polycarbonate
Built in isolator
Reports an alarm in under 0.2 seconds
Resettable element
Supply voltage 17-35V DC
Power Up Surge (1s typical) 1mA
Quiescent 100A
Alarm current (LED On) 4mA
Operating temperature -40C to 70C
Humidity 0% to 95% RH (no condensation or icing)
Vibration, impact and shock EN 54-11 & EN 54-17
IP Rating IP44
Approvals & standards EN 54-11, EN 54-17, CPR & LPCB
Dimensions 90mm height x 90mm width x 63mm depth
Weight 180g
The Apollo SA5900-908APO can be used with any addressable system using Apollo protocol, the SA5900-908APO manual call point has push button operation and a redesigned reset mechanism. Fully compliant with EN54-11. The address of each call point is set at the commissioning stage by means of a seven segment DIL switch. The device features plug and play terminal connections and a resettable element.
Apollo SA5900-908APO
Fully compliant with EN54-11 and EN54-17
Backwards compatible with all Apollo protocols
Intelligent LED indicator
Plug and play terminal connections for fast wiring
Fire resistant polycarbonate
Built in isolator
Reports an alarm in under 0.2 seconds
Resettable element
Supply voltage 17-35V DC
Power Up Surge (1s typical) 1mA
Quiescent 100A
Alarm current (LED On) 4mA
Operating temperature -40C to 70C
Humidity 0% to 95% RH (no condensation or icing)
Vibration, impact and shock EN 54-11 & EN 54-17
IP Rating IP44
Approvals & standards EN 54-11, EN 54-17, CPR & LPCB
Dimensions 90mm height x 90mm width x 63mm depth
Weight 180g
