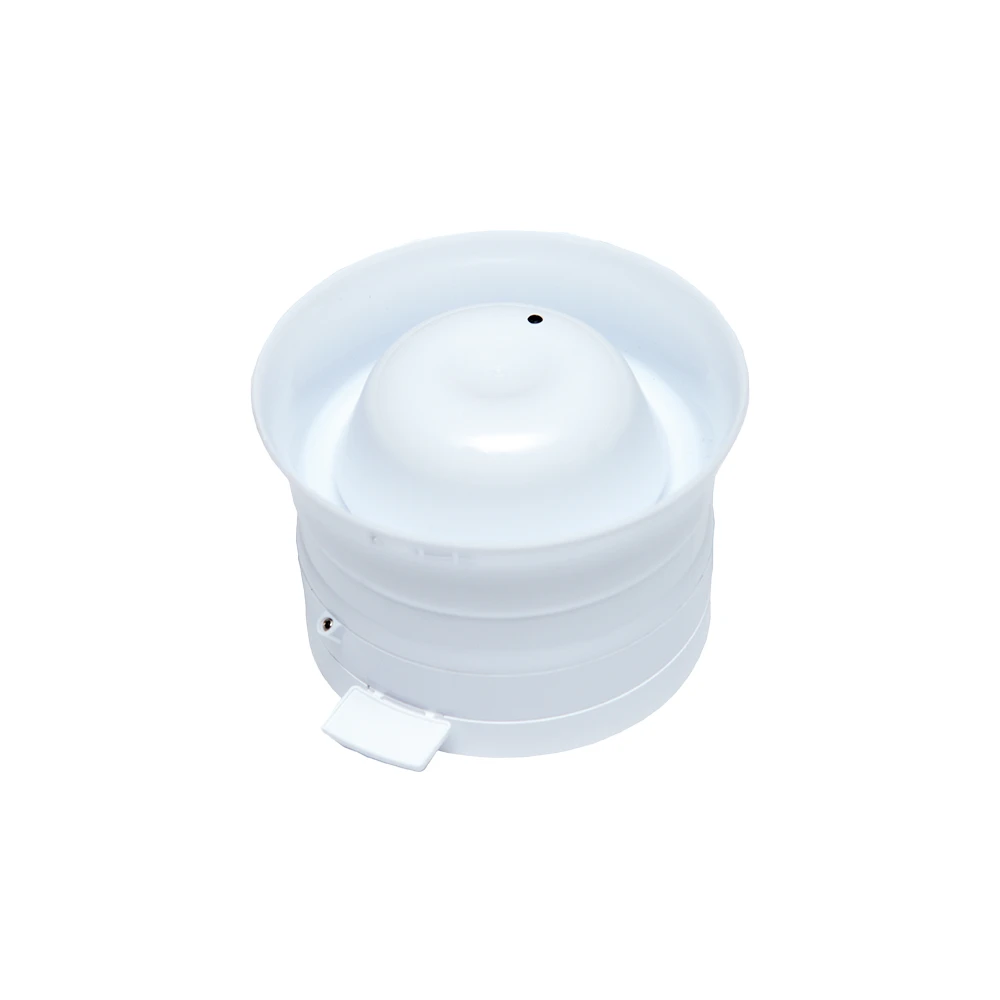

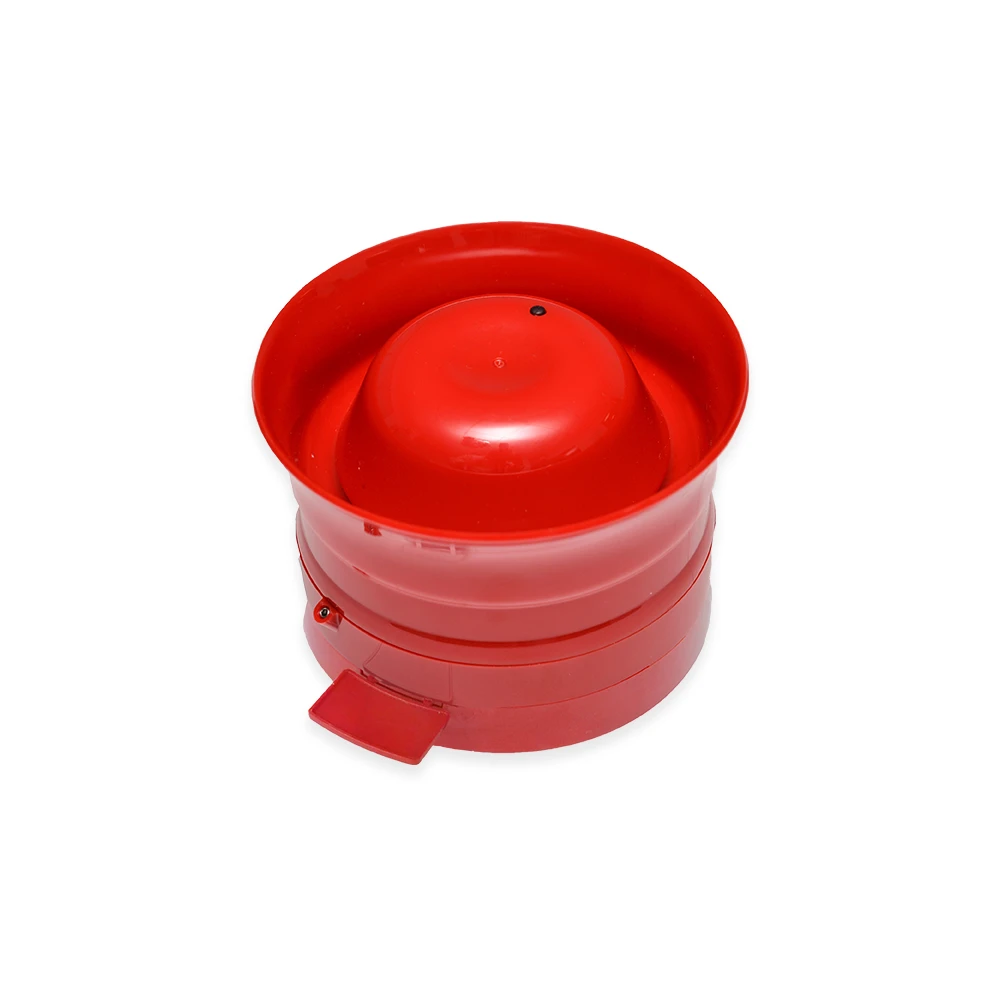

Apollo Intelligent Open-Area Sounder

Name: Apollo Intelligent Open-Area Sounder
Brand: Apollo
SKU: FDS401/545
Price: 45.9 GBP
Availability: InStock

Code: FDS401/545

£45.90

INC VAT

Code: FDS401/545

Body Colour

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo SA5501-300APO Intelligent Open-Area Sounder delivers reliable and high-performance audible signalling in open areas. Designed for integration with XP95, Discovery, and CoreProtocol systems, it ensures advanced functionality with flexible configuration options.

Sits on XPERT base for faster installation and maintenance
7 configurable volume levels and 15 Tone Pairs
Group and Global control for faster response times

Compatible with XP95, Discovery, and CoreProtocol for versatile system integration
7 configurable volume levels to suit different environments
15 tone pairs for adaptable alarm signalling
Sits on an XPERT base for quick and easy installation and maintenance
Supports Group and Global control for rapid system-wide activation

Specification	Details
Electrical
Supply Voltage	17 V - 35 V dc
Digital Communication	CoreProtocol, Discovery, XP95
Quiescent Current	890μA
Alarm Current (LED On)	5.95 mA (max volume at 24 V)
Alarm Current at Each Volume Level
Volume 7	5.95 mA
Volume 6	5.20 mA
Volume 5	4.50 mA
Volume 4	3.75 mA
Volume 3	3.10 mA
Volume 2	2.35 mA
Volume 1	1.65 mA*
Sound & Environmental
Maximum Sound Output (at 90º, 1m)	101 dB(A)
Operating Temperature	-10ºC to +55ºC
Storage Temperature	-10ºC to +55ºC
Humidity	0% to 95% RH (no condensation or icing)
IP Rating	IP33
Mechanical
Dimensions	113 mm diameter x 65 mm deep
Weight	178 g
Materials
Housing	White or red flame-retardant polycarbonate
Terminals	Tin-plated stainless steel

Apollo Intelligent Open-Area Sounder Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Electrical
Supply Voltage	17 V - 35 V dc
Digital Communication	CoreProtocol, Discovery, XP95
Quiescent Current	890μA
Alarm Current (LED On)	5.95 mA (max volume at 24 V)
Alarm Current at Each Volume Level
Volume 7	5.95 mA
Volume 6	5.20 mA
Volume 5	4.50 mA
Volume 4	3.75 mA
Volume 3	3.10 mA
Volume 2	2.35 mA
Volume 1	1.65 mA*
Sound & Environmental
Maximum Sound Output (at 90º, 1m)	101 dB(A)
Operating Temperature	-10ºC to +55ºC
Storage Temperature	-10ºC to +55ºC
Humidity	0% to 95% RH (no condensation or icing)
IP Rating	IP33
Mechanical
Dimensions	113 mm diameter x 65 mm deep
Weight	178 g
Materials
Housing	White or red flame-retardant polycarbonate
Terminals	Tin-plated stainless steel
