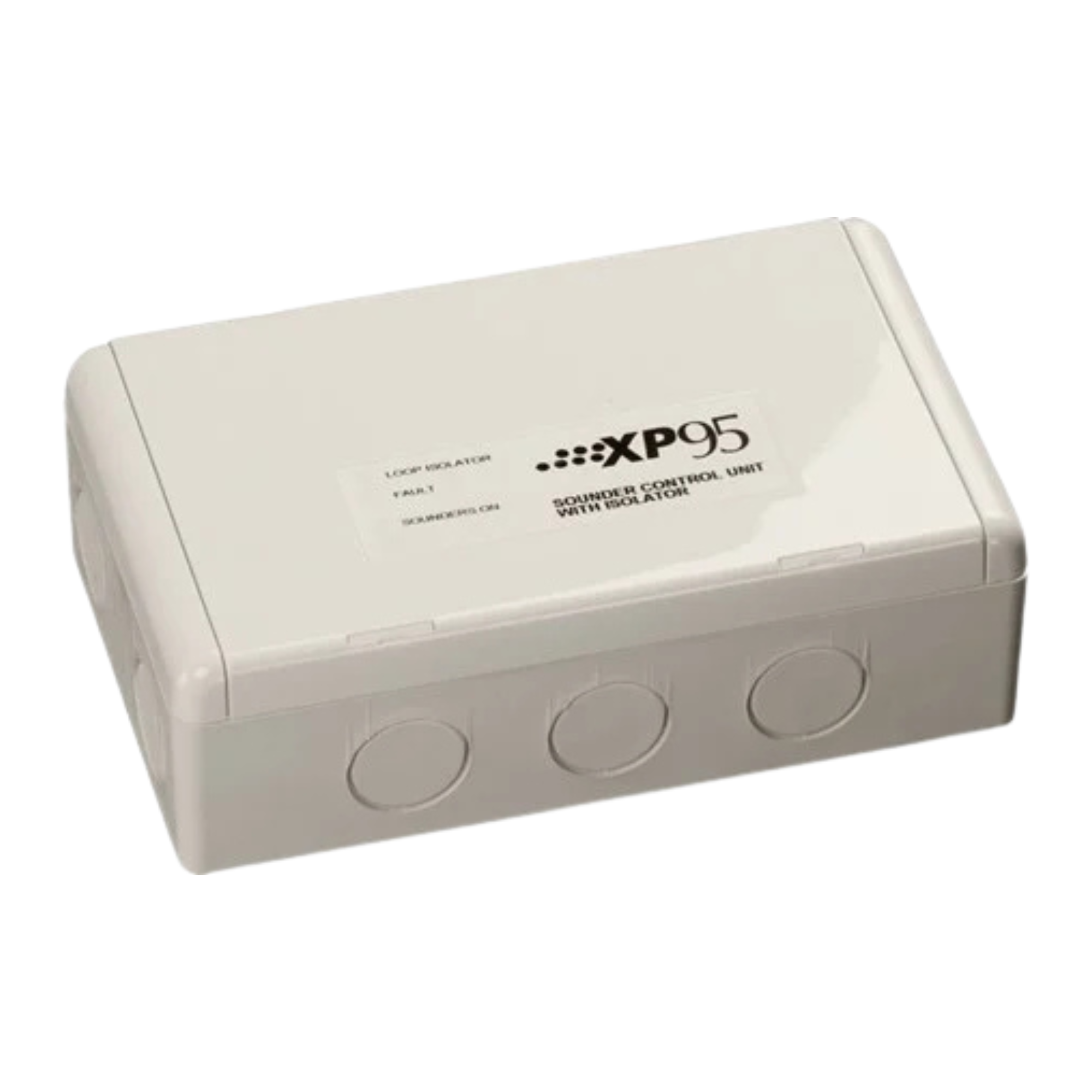

Apollo 55000-852APO | Addressable Sounder Circuit Controller with Isolator

Name: Apollo 55000-852APO | Addressable Sounder Circuit Controller with Isolator
Brand: Apollo
Price: 80.748 GBP
Availability: InStock

Code: FDS400/016

£80.75

INC VAT

Code: FDS400/016

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The 55000-852APO Sounder Control Unit is designed for compatibility with any fire panel using the XP95 or Discovery protocol.

This unit effectively manages the operation of a zone of conventional sounders while providing real-time status updates to the control panel. Ideal for integration in fire alarm systems, the 55000-852APO ensures reliable monitoring and control of sounders, enhancing the overall performance and safety of your fire detection setup.

Apollo 55000-852APO
Allows sounders to be operated continuously or be pulsed; 1 second on, 1 second off
May be synchronised with loop sounders

Part Number	55000-852APO
Warranty	10 year
Mechanical
Colour	White
Weight	240g
Product length	48mm
Product width	150mm
Product depth	90mm
Product length (inches)	1.89in
Product width (inches)	5.91in
Product depth (inches)	3.54in
Standards	EN 54-17, EN 54-18
Approvals	FG, LPCB, VdS, CPR
Protocol voltage (min)	5V
Protocol voltage (max)	9V
Protocol voltage	5 to 9V peak to peak
Supply voltage (max)	28V dc
Supply voltage (min)	17V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Power-up surge current	2.6mA
Maximum power-up time	<1 second
On resistance	0.2Ω
Sounder circuit voltage (max)	32V dc
Sounder circuit currents	30V dc
Sounder circuit currents tested at	1A
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Humidity (max)	95% RH
Humidity (min)	0% RH
Operating temperature	-20 to 70°C
Operating temperature (max)	70°C
Operating temperature (min)	-20°C
Designed to	IP54
Operating temperature (°F)	-4 to 158°F
Operating temperature (max)	158°F
Operating temperature (min)	-4°F

Apollo 55000-852APO | Addressable Sounder Circuit Controller with Isolator Data Sheet

Click here to download
