Apollo 55000-845APO | Addressable Zone Monitor with Isolator

Name: Apollo 55000-845APO | Addressable Zone Monitor with Isolator
Brand: Apollo
Price: 58.5 GBP
Availability: InStock

Code: FDS340/044

£58.50

INC VAT

Code: FDS340/044

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

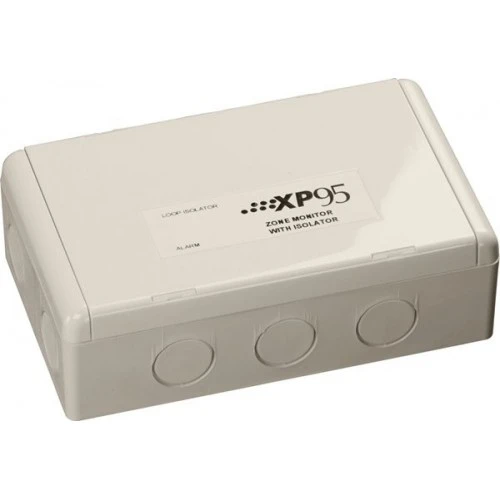

The Apollo 55000-845APO Addressable Zone Monitor with Isolator allows the integration of conventional fire detection zones into an XP95 or Discovery protocol addressable fire system. It enables the connection of a zone of up to 20 conventional detectors while maintaining addressability.

Apollo 55000-845APO
Input for a zone of up to 20 Orbis/Series 65 Conventional Detectors
Two visible LEDs

Category	Specification
General
Warranty	10 year
Mechanical
Colour	White
Weight	230g
Materials housing	Polycarbonate
Product length	90mm (3.54in)
Product width	150mm (5.91in)
Product depth	48mm (1.89in)
Conformance
Approvals	VdS, FG, LPCB, CPR
Electrical
Protocol voltage (min)	5V
Protocol voltage (max)	9V
Protocol voltage	5 to 9V peak to peak
Supply voltage (min)	17V dc
Supply voltage (max)	28V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Power-up surge current	3.5mA
Maximum power-up time	150ms
Stabilization time on power up	4s
Environmental
Humidity	0% to 95% (no condensation or icing)
Humidity Note	No condensation or icing
Humidity (max)	95% RH
Humidity (min)	0% RH
Operating temperature (min)	-20°C (-4°F)
Operating temperature (max)	70°C (158°F)
IP rating Value	IP54

Apollo 55000-845APO | Addressable Zone Monitor with Isolator Data Sheet

Click here to download

Overview

Features

Technical Data

Category	Specification
General
Warranty	10 year
Mechanical
Colour	White
Weight	230g
Materials housing	Polycarbonate
Product length	90mm (3.54in)
Product width	150mm (5.91in)
Product depth	48mm (1.89in)
Conformance
Approvals	VdS, FG, LPCB, CPR
Electrical
Protocol voltage (min)	5V
Protocol voltage (max)	9V
Protocol voltage	5 to 9V peak to peak
Supply voltage (min)	17V dc
Supply voltage (max)	28V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Power-up surge current	3.5mA
Maximum power-up time	150ms
Stabilization time on power up	4s
Environmental
Humidity	0% to 95% (no condensation or icing)
Humidity Note	No condensation or icing
Humidity (max)	95% RH
Humidity (min)	0% RH
Operating temperature (min)	-20°C (-4°F)
Operating temperature (max)	70°C (158°F)
IP rating Value	IP54
