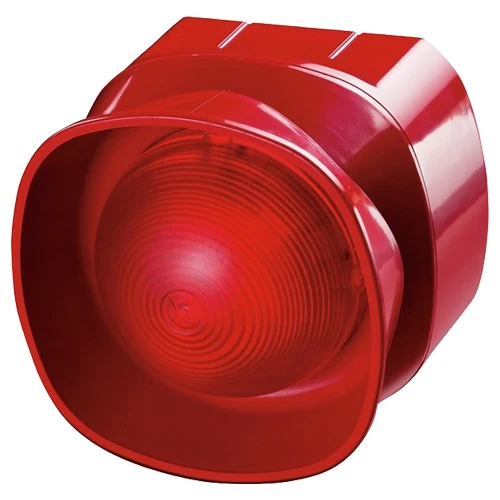

The Apollo 55000-293APO Multi-Tone Open-Area Sounder Visual Indicator is designed for use in indoor open areas, providing clear and effective audible and visual alarm signals in fire detection systems. Compatible with any fire panel using the XP95 or Discovery protocol, this device seamlessly integrates into intelligent fire alarm systems for enhanced safety and compliance.
With a maximum sound output of 100dB(A) and selectable volume levels of 92dB(A) and 100dB(A), the sounder ensures that alarms are both highly noticeable and adaptable to different environments. The built-in visual indicator enhances alerting capabilities, making it particularly suitable for areas where a combination of sound and flashing light is required for effective evacuation procedures.
Designed to complement Apollo's range of intelligent base sounders and Multi-Tone Open-Area Sounders, the 55000-293APO is a reliable and efficient choice for commercial and industrial fire safety applications.
Apollo 55000-293APO
Choice of tones on standard device: Apollo, Slow Whoop and DIN
Two volume settings 92dB(A) and 100dB(A)
Synchronisation of 'alert' and 'evacuate' tones
Individual and group addressing
Built in isolator
IP21C
General | Model | Apollo 55000-293APO |
Warranty | 10 year | |
Performance | Maximum sound output tone | 100dB (A) |
Selectable volume(s) | 92dB (A), 100dB (A) | |
Mechanical | Colour | Red |
Product length | 105mm / 4.13in | |
Product width | 105mm / 4.13in | |
Product depth | 90mm / 3.54in | |
Weight | 290g | |
Conformance | Approvals | CPR |
Electrical | Power-up surge current | 1.2mA |
Maximum power-up time | <1 second | |
Quiescent current | 330μA | |
Quiescent current tested at | 24V dc | |
Supply voltage (max) | 28V dc | |
Supply voltage (min) | 18V dc | |
Supply voltage (Vmin-Vmax) | 18 to 28V dc | |
Compatibility | Protocols Supported | XP95, Discovery |
Environmental | Operating temperature | -10 to 55°C / 14 to 131°F |
Operating temperature (max) | 55°C / 131°F | |
Operating temperature (min) | -10°C / 14°F | |
IP rating Value | IP21C |
