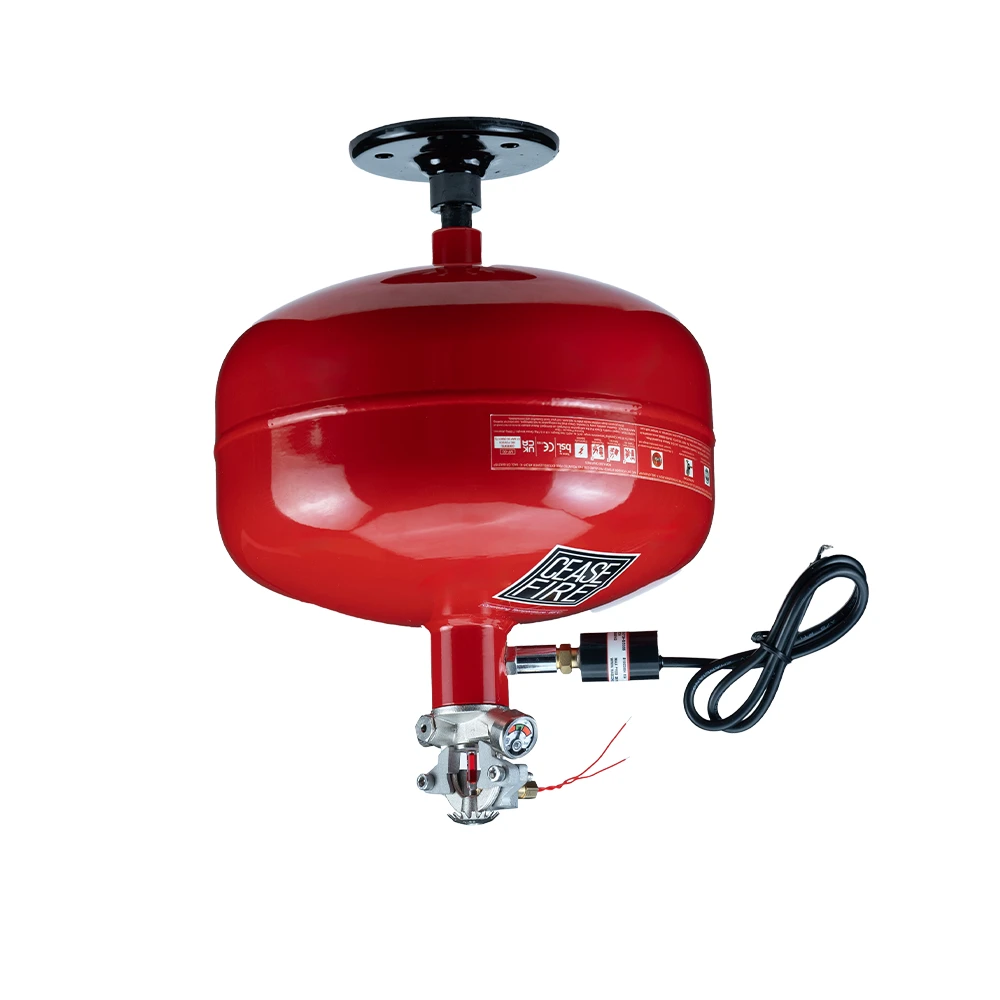

5kg Ceasefire Atom-X Pro Auto Extinguisher | Ceiling Mounted - MAP90

The 5kg Ceasefire Atom-X Pro Automatic Dry Powder MAP90 Fire Extinguisher is a smart, modern fire safety system that can be installed on the ceiling.

It includes built-in fire detectors and automatically puts out fires. The system can be customised to fit the needs of any space, using different sensors and units based on the fire risks in that area. It’s also easy to add to existing buildings.

How The System Works

The main feature of the Atom X Pro system is its smart fire detection module. It can be set up with different detectors like smoke, heat, or beam detectors, depending on the place it's protecting.

It uses a method called cross-zoning, which means the system only activates if two detectors from different areas confirm a fire. Then, it sends an electric signal to trigger the extinguisher.

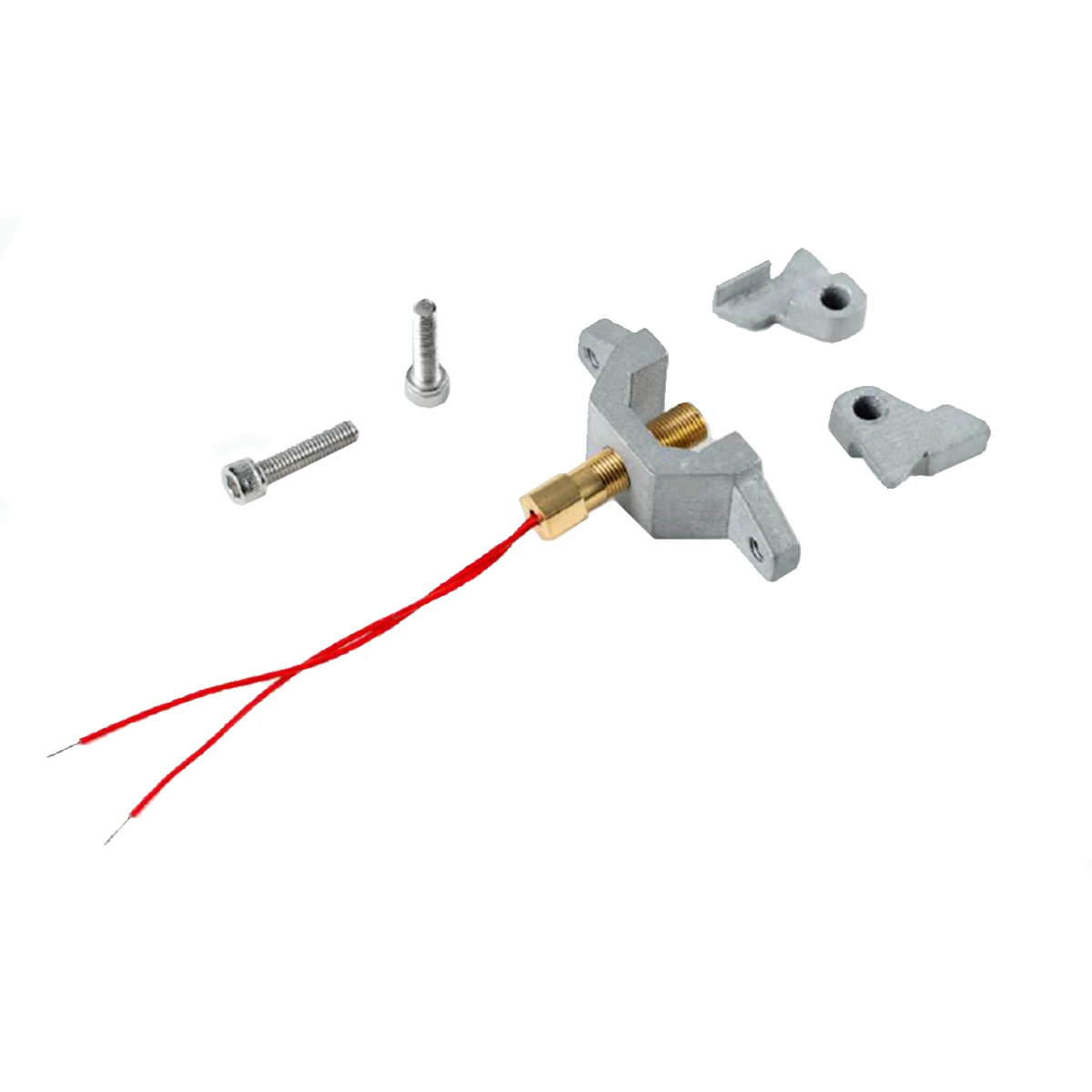

Metron Actuator
On receiving this electrical impulse a metal pin is fired inside the actuator that breaks the glass vial placed at the discharge point of Atom X units, triggering the discharge of the agent. What makes the Atom X truly versatile is that all Atom X units are triggered simultaneously to achieve total flooding results.

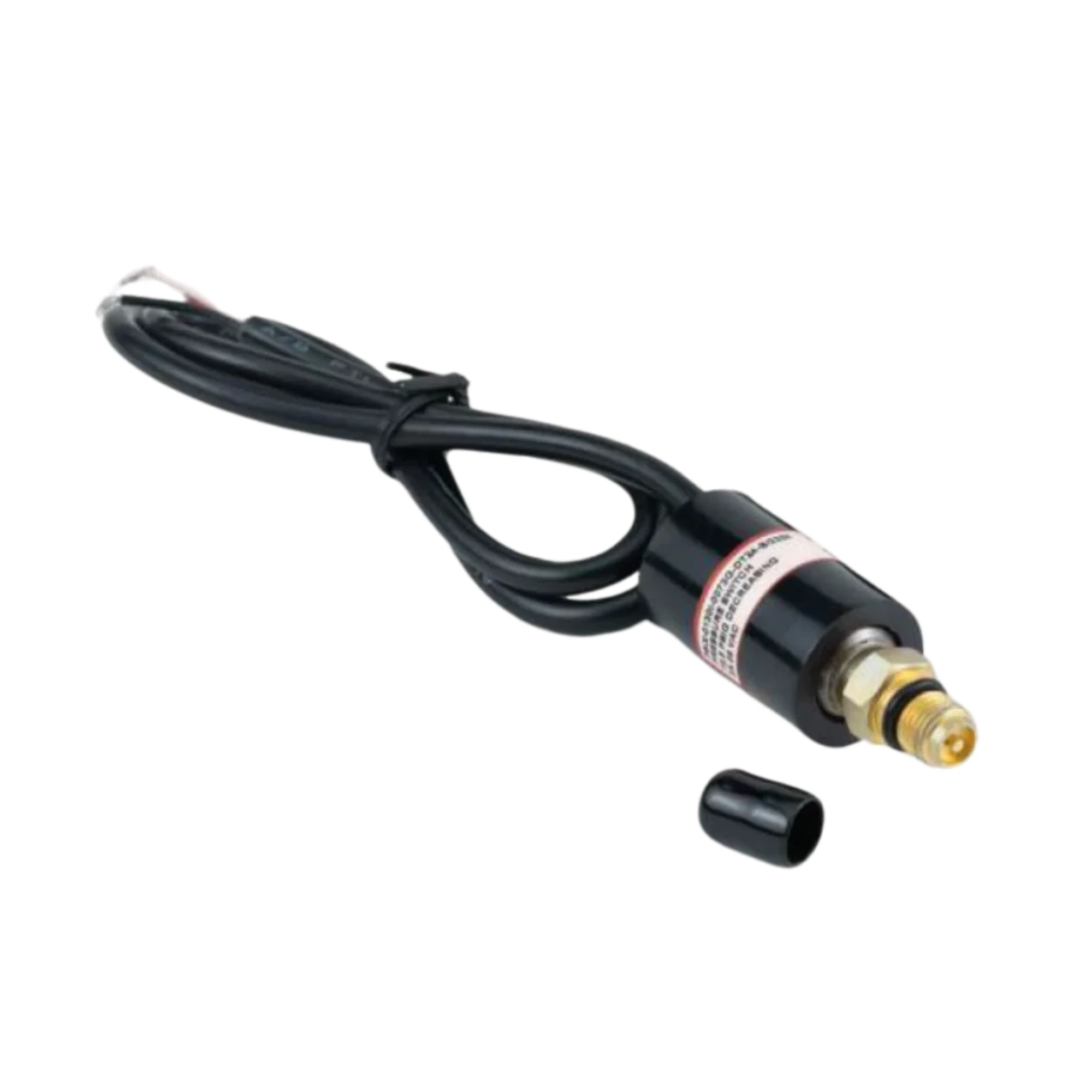

Pressure Switch
The extinguishing units have pressure switches that trigger alarms during a fire, adding extra safety. They also help with preventive maintenance by sending updates to the control panel.

Classification: Effective against all classes of fire.

Agent Options: Available in Clean agent Fluoroketone (FK) and ABC Dry powder.

Requires Minimal Fittings: A key advantage of the system is that it does not require an extensive network of pipes, fittings and ducts; and the plumbing & mechanical works associated with it.

Cost Effective Solution: Since the system does not require so many fittings, fixtures and plumbing, it works out to be highly cost effective.

Easy to Install: The system is a retro-fittable one and hence can be installed in a running and functional premises without hindering the daily business operations of the place. This is because minimal structural changes are required to be done in the premises to install the system.

Intelligent Detection: The detection module of the system can include devices that are most suitable to address the risks present at the premises.

Consumes Minimal Productive Space: The system being ceiling mounted consumes no floor space. This is valuable for business premises where productive floor space is not consumed by the system’s agent containers.

Tamper Proof by Design: Being ceiling mounted, the system also becomes tamper proof as the system is not accessible to everyone.

Certification: BSI tested and PED approved.
