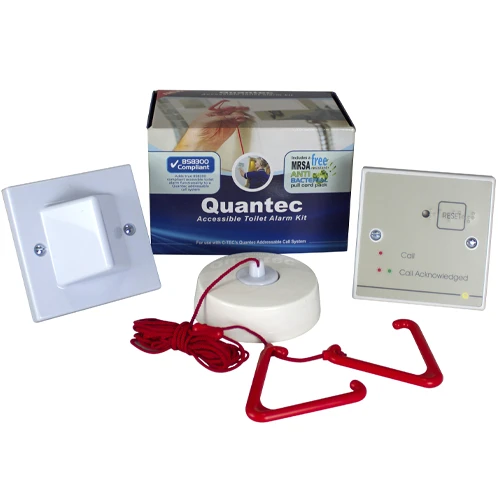

The C-TEC Quantec QT951 Accessible Disabled Persons Toilet Alarm Kit is a cost-effective expansion kit that adds true BS8300 compliant accessible toilet alarm functionality to a Quantec Addressable Call System.

Contents

• QT607 Ceiling Pull Unit: used to generate a Standard or Ensuite call on a Quantec Addressable Call System

• QT605S Reset Call Point with Confidence Sounder: includes a reset button with braille text, red reassurance LED and reassurance sounder

• QT606S Slave Overdoor Light with Sounder: provides audible and visual indication of calls made from a Quantec call point outside bedrooms, WCs

• NC949 Accessible Toilet Sticker: adhesive sticker typically placed on a WC entrance door

• Allows people in distress to call for help quickly and easily

• Call acknowledgement function provides audible & visual feedback inside the WC that help is on the way (see Operation section below)

• Staff can 'Accept' alarm calls at a Quantec display

• Multiple kits can be used on one Quantec system

• Includes a free MRSA resistant anti-bacterial pull cord pack (for a limited period only)

• Backwards compatible

• Must be used in conjunction with at least one Quantec Controller

Specifications

• Power requirements: Power derived from main QT601-2 Quantec Controller (not supplied)

• Quiescent current: Typically 6mA

• Zone Current: N/A

• Max battery size and type: an optional standby battery supply (2 x 12V 7Ah VRLA) can be connected at the main QT601-2 Quantec Controller, not supplied

• Alarm current: > 30mA

• Indicators:

  • QT607 has a red Reassurance LED

  • QT605S has a red/green Reassurance LED

  • QT606S has twin red/green Alarm LEDs

• Controls:

  • QT607 Ceiling pull activated by two pull cord bangles

  • QT605S has a Reset button

  • Call "Accept" function can be carried out at a Quantec Display (not supplied)

• Expansion Connections: N/A. However additional call and indicating devices can be connected to the Quantec network/wiring

• Onboard sounder: Yes (on QT605S and QT606S)

• Onboard infrared receiver: No

• Product dimensions:

  • QT606S - H87 x W87 x D68mm

  • QT605S - H87 x W87 x D24mm

  • QT607 - Diameter 93mm x Depth 27mm

• Construction & finish: Plastic

• IP rating:

  • QT606S - IP41

  • QT605S - IP40

  • QT607 - IP21

• Weight: 0.30kg

• Operating temperature: -5C/+40C
