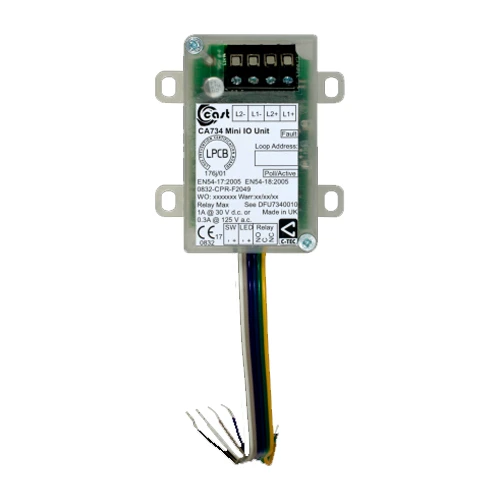

The C-TEC CA734 is an addressable mini input output interface module using the C-TEC CAST analogue addressable protocol.

• LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• Includes a switch monitor, signal relay and onboard loop isolator

• 7mA typical alarm current (1mA typical quiescent current) @ 22-40V DC

• Four plastic tabs for surface or panel mounting

• Includes a 1A 30V DC volt-free changeover relay. Can also switch 0.3A @125V AC

• Offers Switch +Ve, Ve, LED +V, Ve and changeover relay connections

• Future header pin offers expansion opportunities for peripheral I/O devices

Product Specification

• Approvals/certifications:LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• Compatibility:Compatible with C-TEC's XFP/ZFP CAST Addressable Fire Panels

• Supply/operating voltage:22 to 40V DC.

• Quiescent current:1mA typical

• Activation current:7mA @ 22 to 40V DC.

• Auxiliary relays:One volt-free single pole changeover relay rated at 1A @ 30V DC (or 0.3A @ 125V AC). Non-monitored. Clean contact

• Auxiliary inputs:One monitored input that can be set to operate as: (1) a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally-open switch, triggered by a 470R

• Indicators:Single Red (Relay Active & Polling); Single Yellow (Monitored Input Fault)

• Product dimensions (mm):65 W x 65H x 20 D mm (excluding terminal block & ribbon cable). Ribbon cable is 150 mm length

• Construction & finish:Clear ABS polycarbonate enclosure

• IP Rating:IP40

• Weight:47g

• Operating conditions/temperature:-10C to +55C
