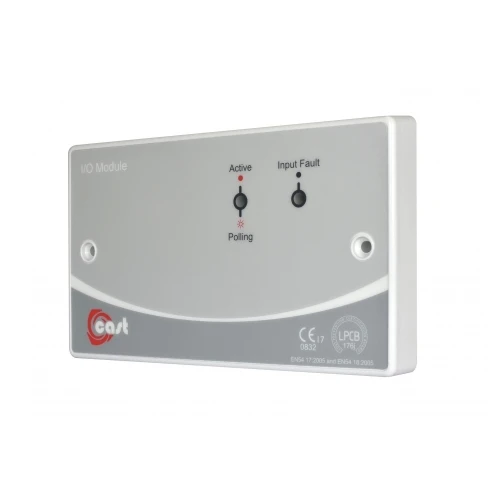

The C-TEC CA732 is an addressable zone monitor interface module using the C-TEC CAST analogue addressable protocol.

• LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• A single-zone addressable Zone Monitor capable of supporting up to 20 conventional fire detectors and 10 MCPs

• Mountable on a standard UK 25mm double gang back box

• Onboard short-circuit loop isolator

• 4mA typical alarm current (1.1mA typical quiescent current) @ 22-40V DC

• Indicators for Loop polling, input faults and relay status

• Alternatively, can be used as general purpose input monitor

Product Specification

• Approvals/certifications:LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• Compatibility:Compatible with C-TEC's XFP/ZFP CAST Addressable Fire Panels

• Application/operation:A single-zone addressable Zone Monitor capable of supporting up to 20 conventional detectors and 10 manual call points

• Supply/operating voltage:22 to 40V DC

• Quiescent current:1.1mA typical

• Activation current:4mA @ 22-40V DC

• Auxiliary relays:None

• Auxiliary inputs:One monitored input that can be set to operate as a single zone monitor to support up to 20 ActiV detectors

• Indicators:Active (Lit Red): relay activated; monitored zone triggered or monitored switch closed; Polling (Flashing Red): communication check with the panel; Input Fault (Lit Yellow): fault detected on the monitored zone/switch

• Connections:Six 45 screw-type connectors that can take 0.5-2.5mm2 cable: +Ve&-Ve LoopIn; +Ve &-Ve Loop Out; Zone +Ve & -Ve

• Product dimensions (mm):147 W x 87H x 22 D mm. Can be mounted on a standard 25mm UK flush or surface double gang back box

• Construction & finish:ABS Polycarbonate plate with a 200 micron two-tone grey velvet polyester label with red and white detailing

• IP Rating:IP40 when correctly installed

• Weight:122g

• Operating conditions/temperature:-10C to +55C
