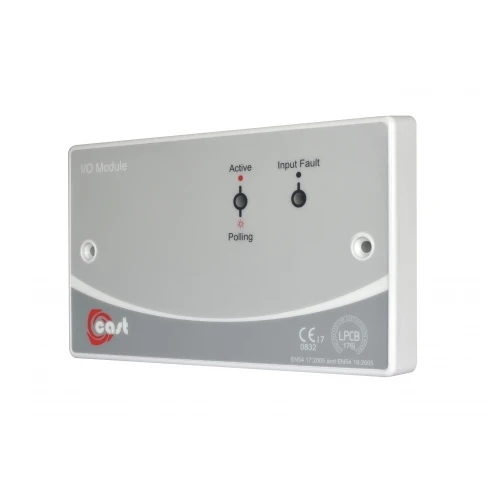

The C-TEC CA730 is an addressable input output interface module using the C-TEC CAST analogue addressable protocol.

Features

• LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• Incorporates the functions of a switch monitor, zone monitor and output unit

• Can be configured to monitor any combination of:-
  Up to 20 conventional detectors & 10 MCPs
  Any normally open switch with an EOL resistor fitted
  A simple normally open or closed switch (non-fault monitored)

• Onboard short-circuit loop isolator

• 5.5mA typical alarm current (1.3mA typical quiescent current) @ 22-40V DC

• Indicators for Loop polling, input faults and relay status

• Can switch 1A@30V DC (or 0.3A@125V AC)

• Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc

Product Specification

• Approvals/certifications:LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13

• Compatibility:Compatible with C-TEC's XFP/ZFP CAST Addressable Fire Panels

• Application/operation:Incorporates the functions of a switch monitor, zone monitor and output unit in one device

• Supply/operating voltage:22 to 40V DC

• Quiescent current:1.3mA typical

• Activation current:5.5mA @ 22 to 40V DC

• Auxiliary relays:One volt-free single pole changeover relay rated at 1A @ 30V DC (or 0.3A @ 12 V AC). Non-monitored. Clean contact

• Auxiliary inputs:One monitored input that can be set to operate as a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally-open switch, triggered by a 470R

• Indicators:Active (Lit Red): relay activated; monitored zone triggered or monitored switch closed; Polling (Flashing Red): communication check with the panel; Input Fault (Lit Yellow): fault detected on the monitored zone/switch

• Connections:Six 45 screw-type connectors that can take 0.5-2.5mm2 cable: +Ve&-Ve LoopIn; +Ve &-Ve Loop Out; Zone +Ve & -V. Also includes N/O, N/C & C relay connections

• Product dimensions (mm):147 W x 87H x 22 D mm. Can be mounted on a standard 25mm UK flush or surface double gang back box

• Construction & finish:ABS Polycarbonate plate with a 200 micron two-tone grey velvet polyester label with red and white detailing

• IP Rating:IP40 when correctly installed

• Weight:122g

• Operating conditions/temperature:-10C to +55C
