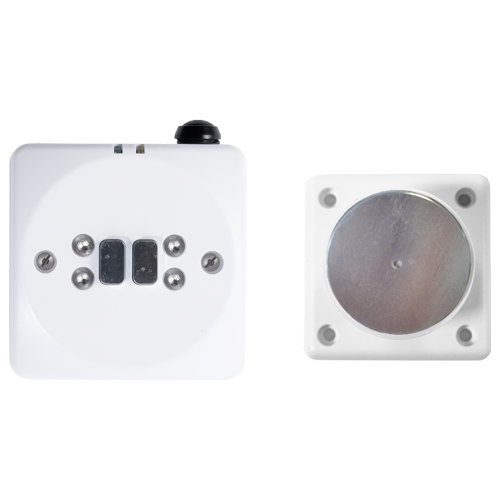

Door retainers ensure buildings are accessible for all by holding fire doors in the open position then releasing and closing them according to the fire system design. The Apollo 55000-982APO ADR is an XP95 device designed for installation directly onto an addressable loop and is suitable for use on all types of fire door, including critical actuation doors.

The addressable functionality allows panel cause & effect programming in complex buildings that facilitates evacuation whilst closing fire doors in alarmed areas.

The unit is supplied with a manual release switch and is programmable to operate under failsafe conditions.

Direct connection to the fire panel makes the ADR a Category A fire door retainer, as defined in BS7273-4 providing the panel has supporting BS 7273-4 Category A functionality.

• XP95 Compatible

• Integrated loop isolator

• Extra low voltage usage

• Suitable for critical actuation (Category A) installations (when connected to a compliant panel)

• Failsafe by design

• Patented permanent magnet technology

• Doors and zones can be individually controlled

• 200N holding force rating

• Surface or semi-flush wall mounted

• Floor mounting options via standard bracket

• Manual release switch

Specification

• Supply voltage: 17V to 28Vdc

• Modulation voltage: 5V-9V

• Current Consumption Switch ON Surge and Quiescent: 3.7mA Max

• EDL: 4

• Rated holding force: 200N

• Typical release-hold cycle: 8 seconds (will release within 3 seconds)

• Operating temperature: 0C to + 40C

• Standards & Approvals: EN 1155:1997 + A1:2002, EN 54-17:2005, EN 54-18:2005, CPR

• IP Rating: IP3X

• Dimensions: W87.9mm x H87.9mm x D83.5mm

• Weight: 515g

• Materials: Housing is white flame-retardant ABS

The ADR complies with the essential requirements of the EMC Directive 2014/30/EU.

The ADR complies with the essential requirements of the Construction Products Regulation (EU) 305/2011.
