Advanced Electronics Mx-5802 | 2-8 Loop Addressable Panel | Apollo/Hochiki

Continue shopping

Go to Basket

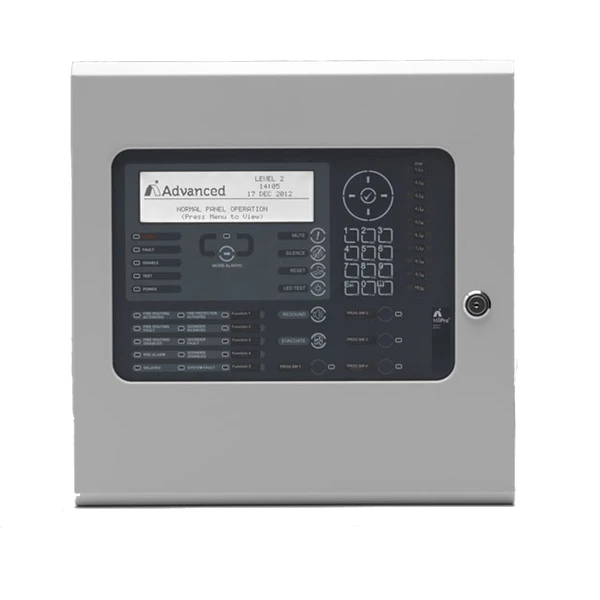

Advanced Electronics Mx-5802 | 2-8 Loop Addressable Panel | Apollo/Hochiki

Name: Advanced Electronics Mx-5802 | 2-8 Loop Addressable Panel | Apollo/Hochiki
Brand: Advanced-electronics
Price: 4647.599999999999 GBP
Availability: InStock

£4,647.60

INC VAT

Code: FDS132/102

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview

The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 on-board sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation.

Features

MX-5802
EN54 Part 2, 4 and 13 Approved
Fault tolerant
Two to eight loops
c/w 2 Loop Cards
Extended enclosure
Maximum 45Ah internal batteries
Up to 200 additional programmable LEDs, 2 x switch cards or mimic
Up to 8 programmable key switches or 4 plus printer

Product Specification

Display: White backlit 240 x 64 graphical LCD
LED Indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour
(Fault & System)
Controls: Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x
Programmable Push Buttons
Mains Supply: 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max
Enclosure / Colour: Steel IP30 / RAL7035
Cable Entry: (20mm knockouts) 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear
Size H x W x D mm: 750 x 450 x 190
Metalwork Options: Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount
